Vascular Simulation
Technology

Ground-breaking simulation technologies for Structural HeartCardiovascularNeurovascular
and Endovascular device applications.

Engineered and manufactured to deliver the performance, capability, and realism of high-end benchtop systems without the premium price tag.

Flow Loop Essentials

Valvengine+_edited_edited_edited_edited_

VALVENGINE

Heart Valve Cycling System

•  Pulse/Cycle Range: 0-200 BPM
•  Adjustable SYS/DIA Pulse Duration (150-750 ms)
•  Adjustable Flow Power (0-100% or 0-8L/min)
•  Maximum Output Pressure: ~450 mmHg
•  Intuitive Touchscreen Controls (HMI)

•  Dimensions: (10.25*5.25*4.75) in

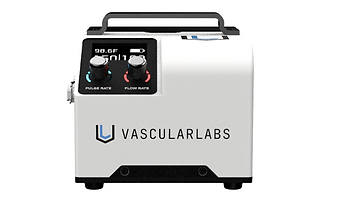

NOMAD Front_edited_edited_edited.png

NOMAD

High Flow Pulsatile Pump

•  Pulse Rate: 0-180 BPM (can run continuous)
•  Adjustable Flow Power (0-100% or 0-5L/min)
•  Built-in 1L Heated Water Reservoir (98.6°F)
•  Maximum Output Pressure: ~450 mmHg
•  Travel-Compliant Rechargeable Battery

•  Dimensions: (8.50*7.00*5.50) in

NOMAD NANO.201.png

NOMAD NANO

High Flow Pulsatile Pump

•  Pulse Rate: 0-180 BPM (can run continuous)
•  Adjustable Flow Power (0-100% or 0-5L/min)
•  Maximum Output Pressure: ~450 mmHg

•  Power Specs: 12VDC Power Supply

•  Powerful Small and Cost-Effective
•  Dimensions: (5.00*4.00*5.00) in

​


DPM

Digital Pressure Monitor

•  Pressure Range: (-999 to 999) mmHg
•  Sampling Rate: 40-250 Samples Per Second (Hz)
•  Power Specs: USB-C Port & Rechargeable Battery
•  Data Export: Exports .CSV file to PC via Wi-Fi
•  Transducer: DELTRAN II - 3cc/hr flush + Stopcock

•  Dimensions: (3.00*2.00*2.00) in

Build Your
Flow Setup

VL Heart Model

Push

Pull

VL Tank.208.png

Pressure Monitor

Pressure Monitor

Phantom Model

Heart Model

Water Tank

Pressure Monitor


Phantom Model

Push

Push

Heart Valve
Research

A high-fidelity, research-grade 21 mm aortic valve engineered for cardiovascular simulation and hemodynamic testing. Designed to reproduce realistic trileaflet motion, coaptation, and flow behavior throughout the cardiac cycle, the valve integrates easily into benchtop models and flow-loop systems without the cost or complexity of conventional valve-testing platforms.
